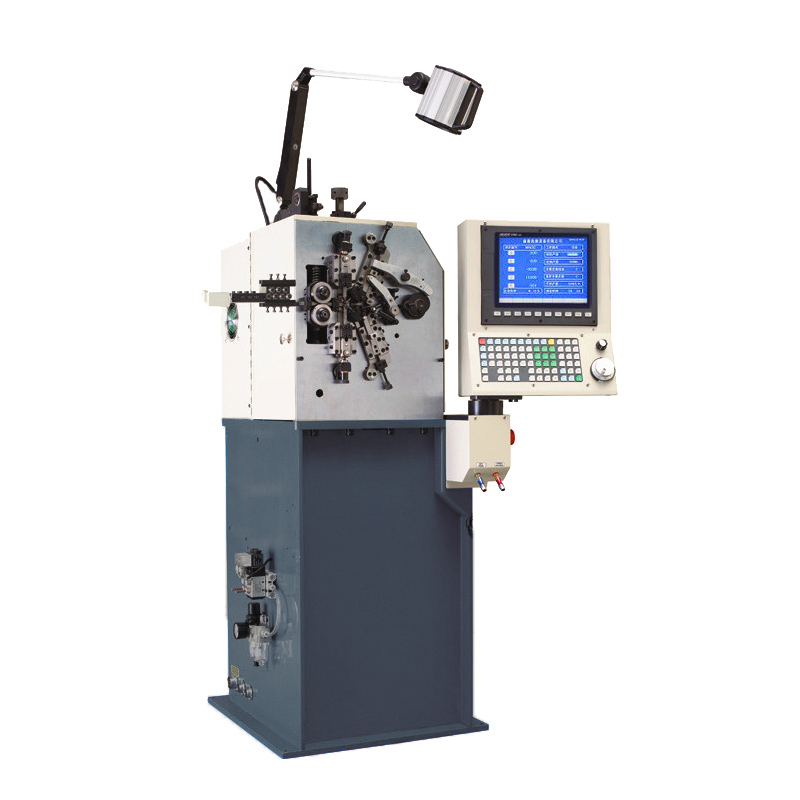

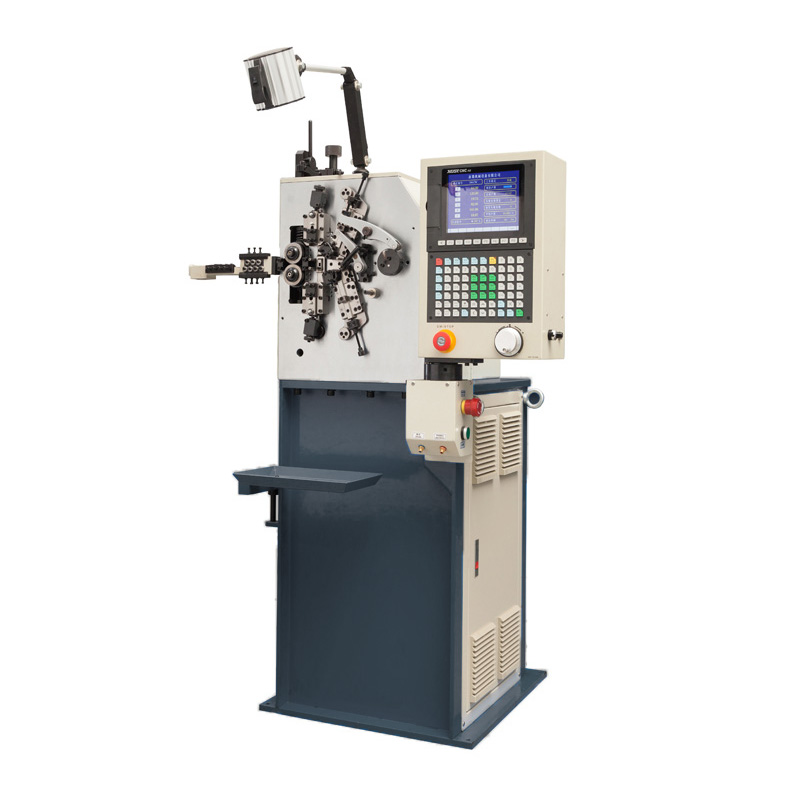

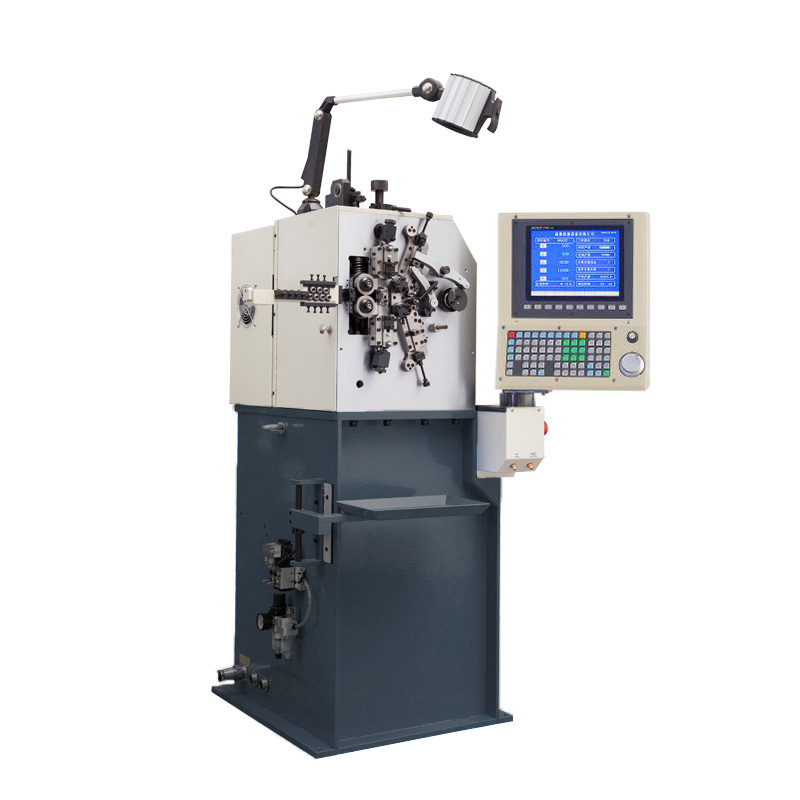

CSM-608CNC 6 axis spring coiler spring making machine


  • CSM-608CNC 6 axis compression spring machine, wire diameter 0.1~0.8mm


LEARN MORE

  • Product detail
  • Range of application


Specification of CSM-608CNC Compression Spring Machine :


1.Model:CSM-608CNC
2.Wire Diameter:0.1-0.8mm
3.O.D:¢25mm
4.Production Rate:1000pcs/min
5.Feed Length:unlimited
6.Wire Feed:0.75kw
7.Cutter:0.4kw*2
8.OD Axis:0.4kw
9.Pitch:0.4kw
10.Arbor back-and-forth:0.4kw
11.Monitor Display:Chinese/English
12.Max. Value:99999.99mm
13.Min.Value:0.02mm
14.Memory:

150 Program Max

999 Lines for each program

15.Machine Dimension:90*70*135cm
16.Machine Weight:500kgs
17.Power:220v 3p 50/60Hz


Details of CSM-608 Spring Making Machine :

1. Faster conversion speed of left and right hand spring.

2. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.

3. Max speed reaches 1000pcs/min, absolutely a nice equipment for small coil springs.


For more information, contact us.
