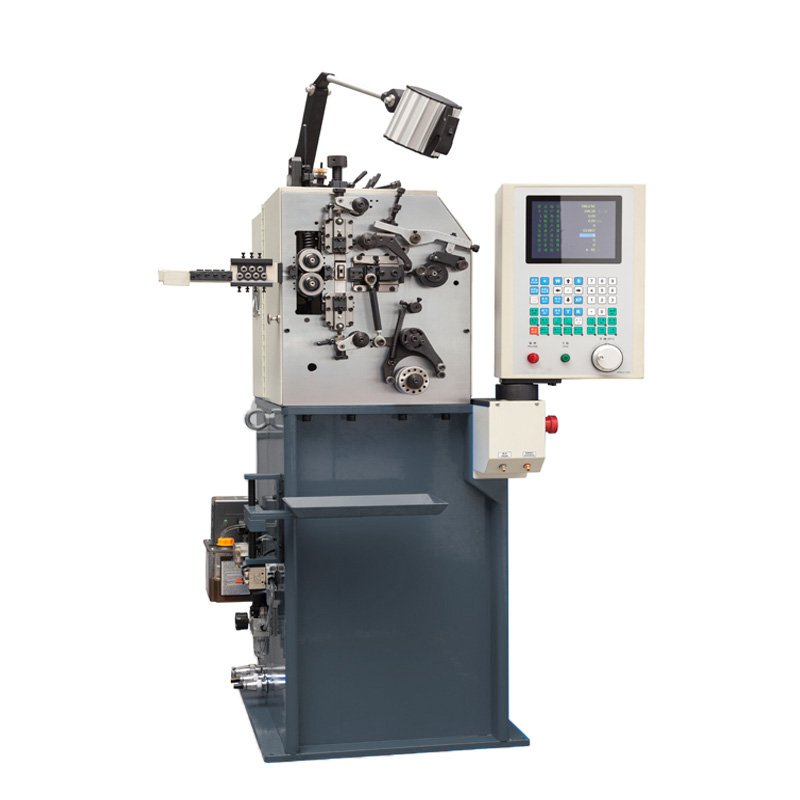

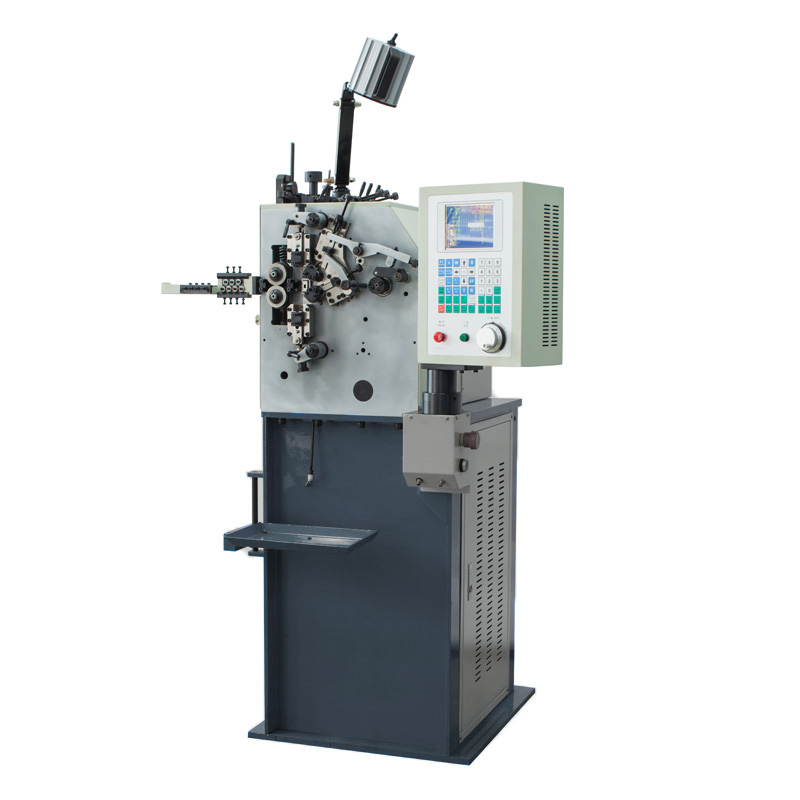

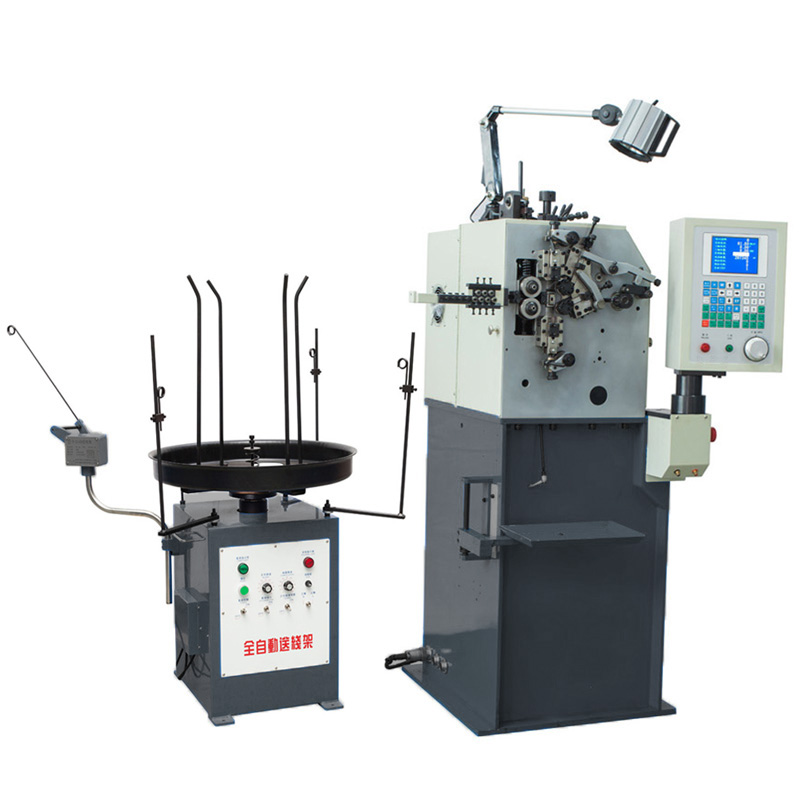

CSM-208CNC 2 axis CNC compression spring machine


  • Spring diameter 0.1~0.8mm It is composed of Y axis and X axis of CAM respectively, and each servo axis can operate independently or synchronously according to the program of the system.



LEARN MORE

  • Product detail
  • Range of application


Product Range:

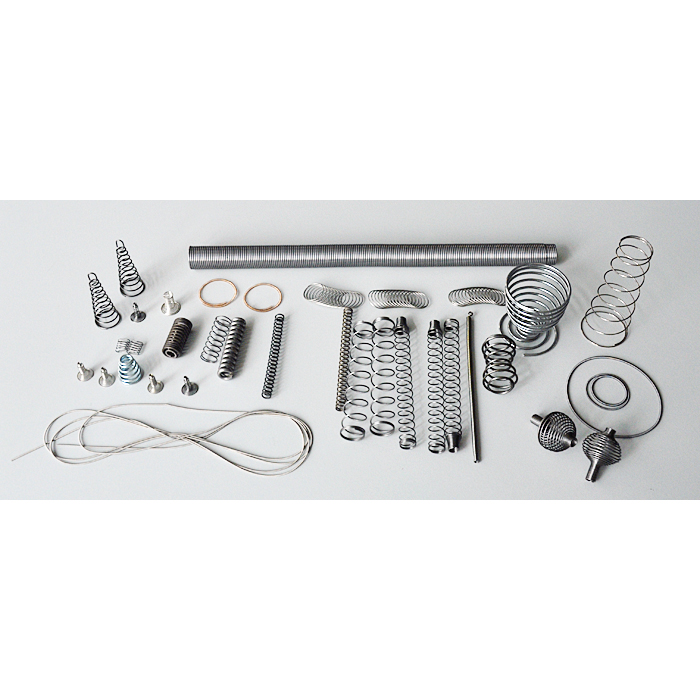

This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forms.


Specification of CSM-208CNC Compression Spring Machine :

Model:CSM-208CNC
Wire diameter:φ0.1~0.80mm
Axes:2 axes
Maximum Outside Diameter:20mm
Maximum Feeding Length:unlimited
Maximum Manufacture Speed:550pcs/min
Feed Speed:300m/min
Memory Number:1000PCS
Wire Feed Servo Motor:1.0kw
Cam Servo Motor:1.0kw
Power AC:3-Phase 220v
Dimension (L*D*H):900X850X1600mm
Wooden Case Dimension:1000x1050x1750mm
Machine Weight:400kg
Gross Weight:450kg









For more information, contact us.
