CSM-220CNC 2 axis CNC Spring making machine


  • Spring wire diameter 0.5~2mm

    CSM-220 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. the spring machine’s two axes can operate independently of synchronously by command from its computer program.


LEARN MORE

  • Product detail
  • Range of application

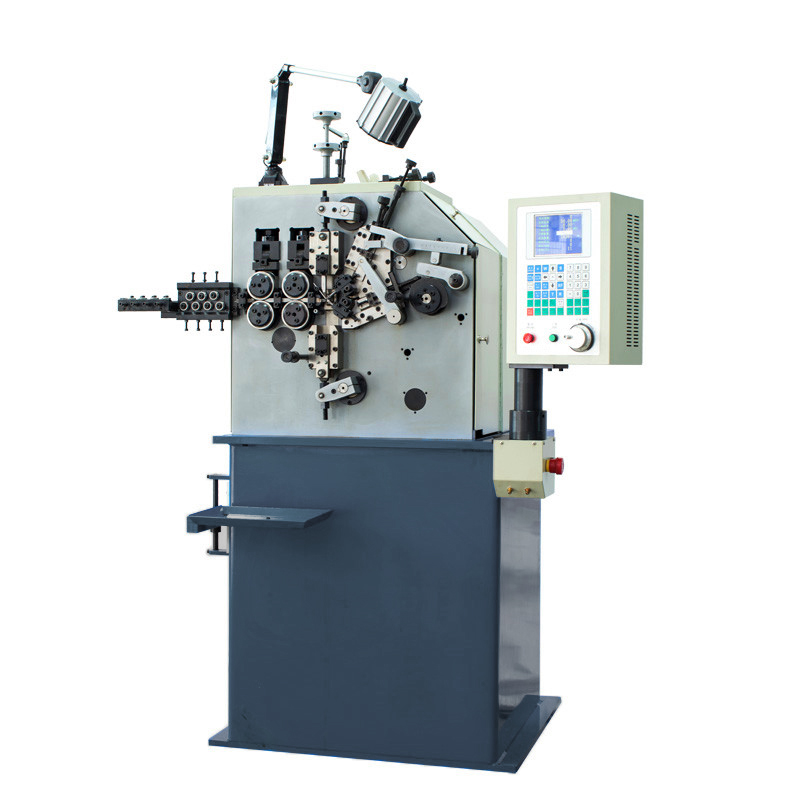

CSM-220 2 axis CNC spring making machine


Product Range:

This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire forms.


Specification of CSM220 Compression Spring Machine :

Model:

CSM-220

Wire diameter:

φ0.5~2.0mm

Axes:

2-3 axes

Maximum Outside Diameter:

45mm

Maximum Feeding Length:

unlimited

Maximum Manufacture Speed:

300pcs/min

Feed Speed:

150m/min

Memory Number:

1000pcs

Wire Feed Servo Motor:

2.7kw

Cam Servo Motor:

2.7kw

Power AC:

3-phase 380v

Dimensions (L*D*H):

900X850X1600mm

Wooden Case Dimensions:

1100x1100x1600mm

Machine Weight:

800kg

Gross Weight:

850kg



Details of CSM-220 Spring Making Machine :

1. Cam can be moved clockwise or anti –clockwise:wire feed length can be changed while running the machine.

2. Computer can automatically decelerate according to the timing when the probe should be used.

3. Prodution speed can be increased or decreased at any ting running the machine.
