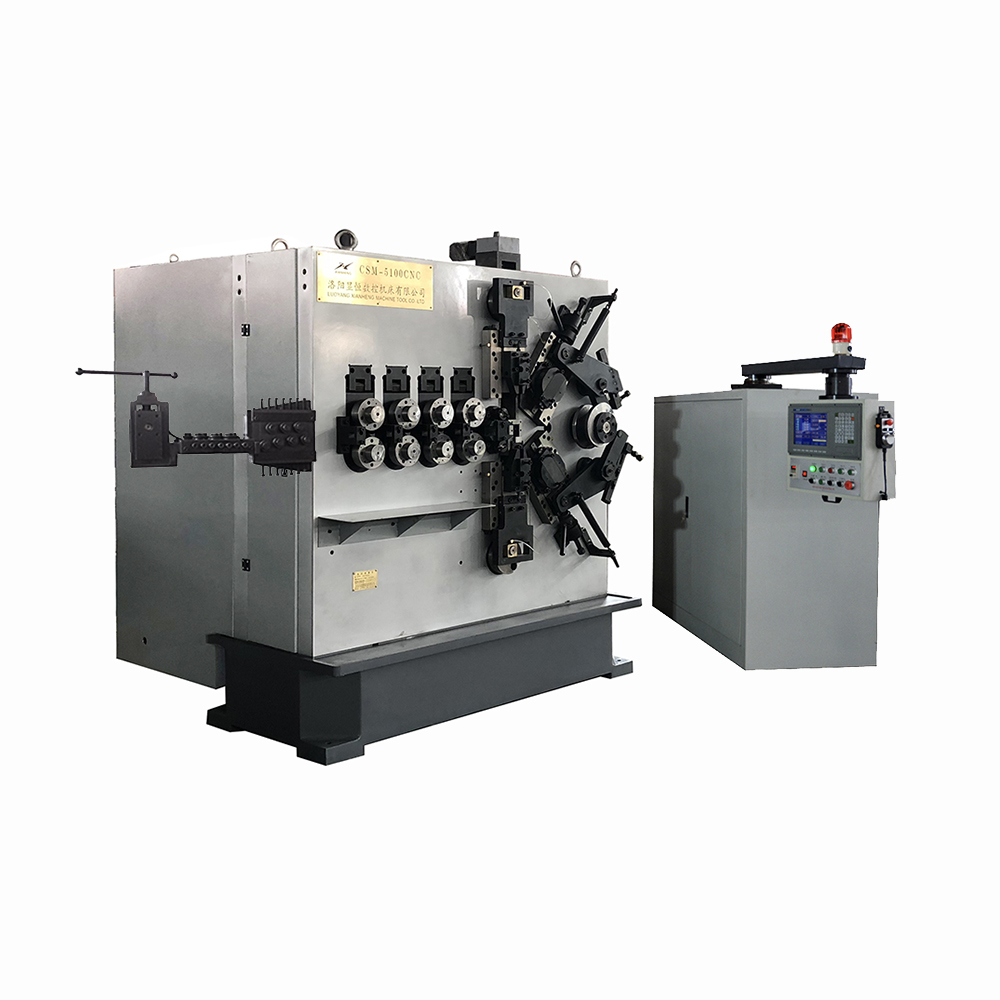

CSM-5100CNC compression Spring coiling Machine


  • Equipped with an oscillating cut as standard feature, along with a center base mechanism that eliminates the need for cut readjustment when the coil diameter is changed.



LEARN MORE

  • Product detail

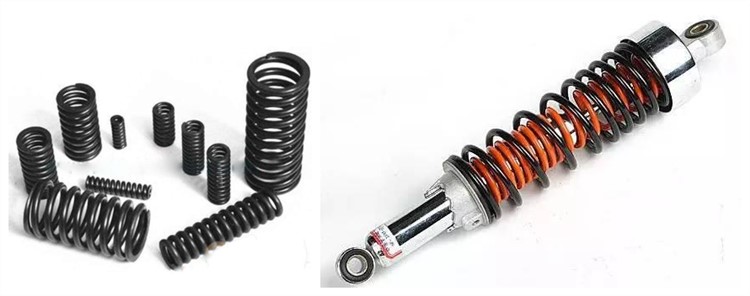

  • Range of application

Specifications of CSM-5100CNC compression Spring coiling Machine:


Model No.

CSM-5100CNC

Wire Dia

6-10 mm

Max. Outside Diameter

110 mm

Speed of the Wire Feed

93 m/min

Total power of Motors

69.9 Kw

Net Weight

10000 Kg

Machine Dimension

2350*1600*1870

Motor

Samyo or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or Topcontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on




Advantages of CSM 5100 CNC compression Spring coiling Machine:

1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
