CSM-550CNC compression Spring coiling Machine


  • An 5-axis coiling machine with a wire diameter of Φ2 to Φ5 mm and excellent cost-effectiveness.


LEARN MORE

  • Product detail
  • Range of application

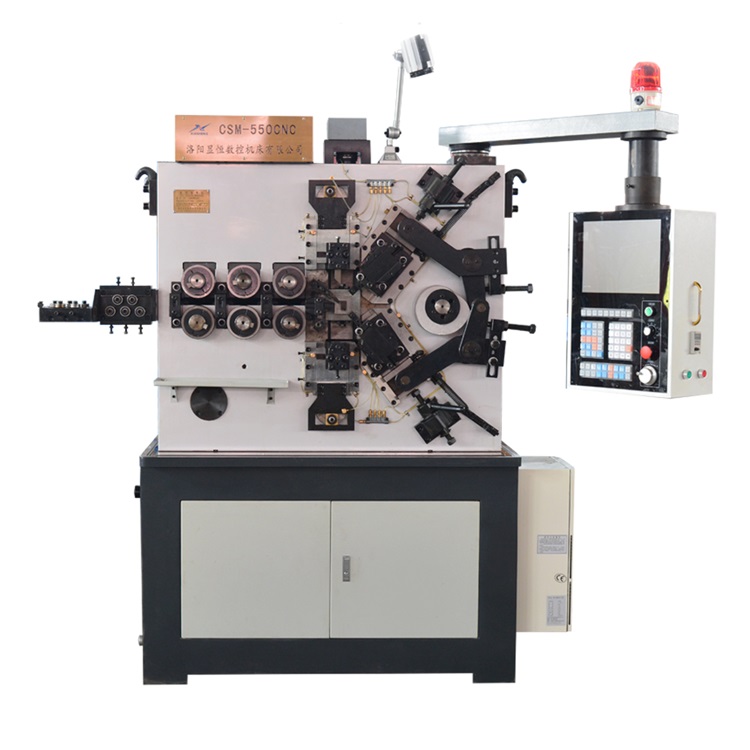

CSM-550CNC compression Spring coiling Machine


Model No.

CSM 550 CNC

Wire Dia.

2-5 mm

Max. Outside Diameter

90 mm

Speed of the Wire Feed

120 m/min

Total power of Motors

25.5 Kw

Net Weight

4000 Kg

Machine Dimension

1300*1050*1850

Motor

Yaskawa servo motor in Japan

Driver part

Yaskawa servo motor driver

Computer control system

Taiwan yitu

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on




Advantages of CSM-550CNC compression Spring coiling Machine:

1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
