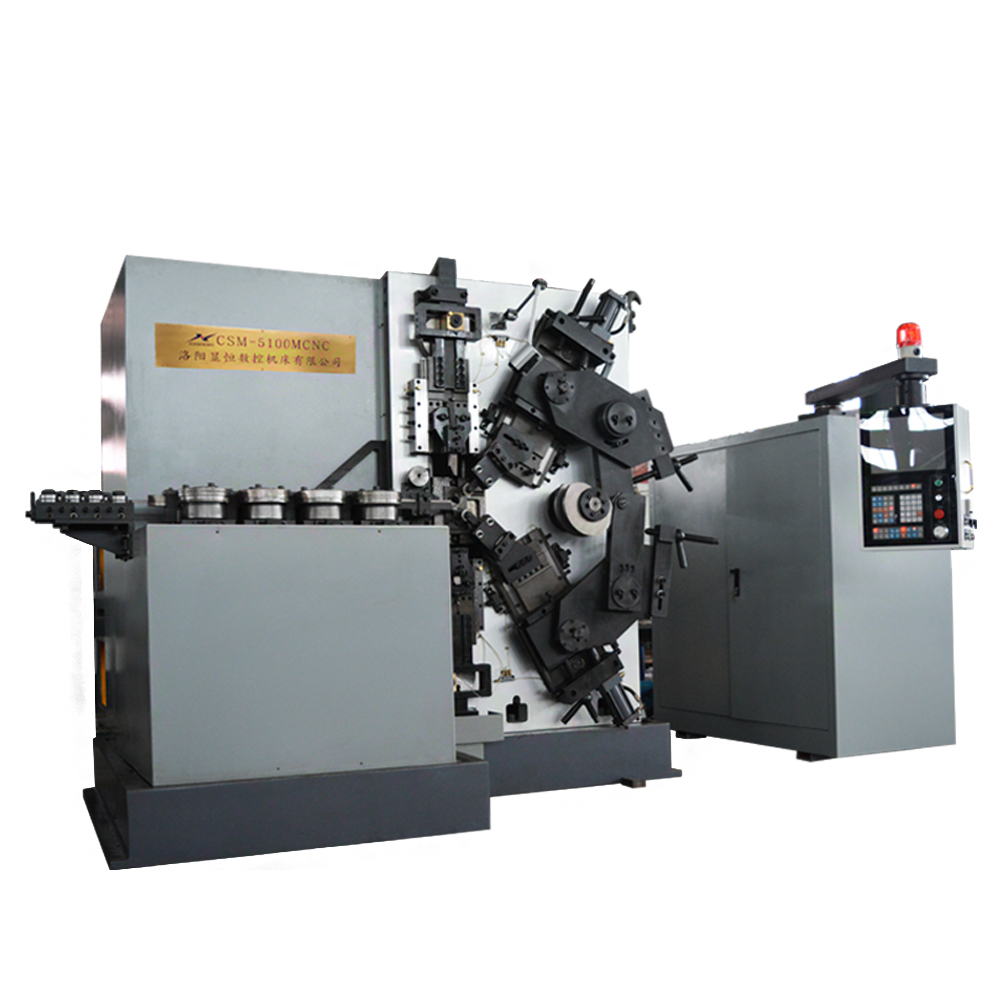

CSM-5120MCNC compression mold Spring coiling Machine


  • An 5-axis mold spring coiling machine with a wire diameter of Φ6 to Φ12 mm and excellent cost-effectiveness.


LEARN MORE

  • Product detail
  • Range of application

CSM-5120MCNC compression mold Spring coiling Machine


Model No.

CSM-5120MCNC

Wire Dia.

6-12 mm

Max. Outside Diameter

150 mm

Speed of the Wire Feed

57 m/min

Total power of Motors

69.9 Kw

Net Weight

10000 Kg

Machine Dimension

3200*1800*2450

Motor

Sanyo or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or topcontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on



Advantages of CSM-5120MCNC compression mold Spring coiling Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
