CSM-5160CNC Compression Spring Making Machine


  • An 5-axis coiling machine with a wire diameter of Φ6 to Φ16 mm and excellent cost-effectiveness.


LEARN MORE

  • Product detail

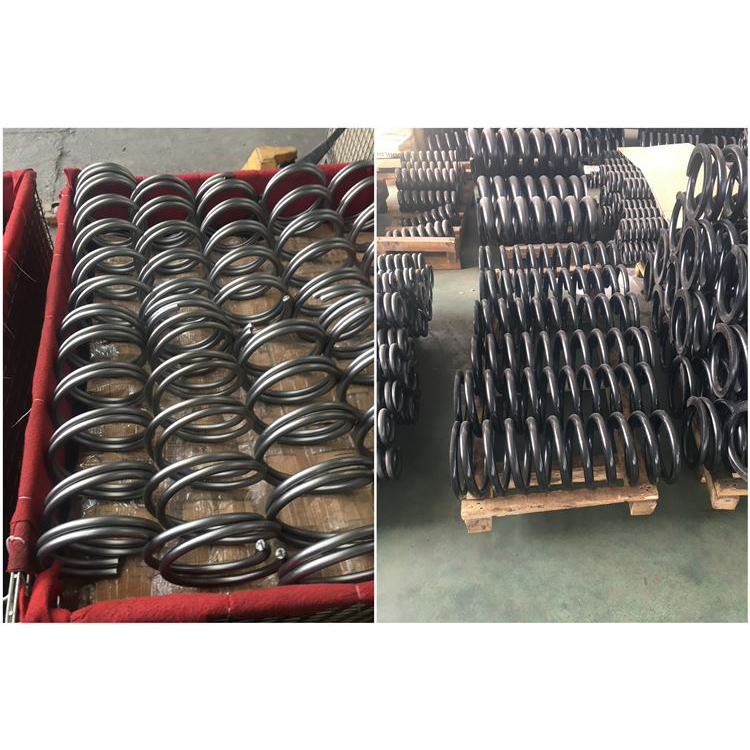

  • Range of application

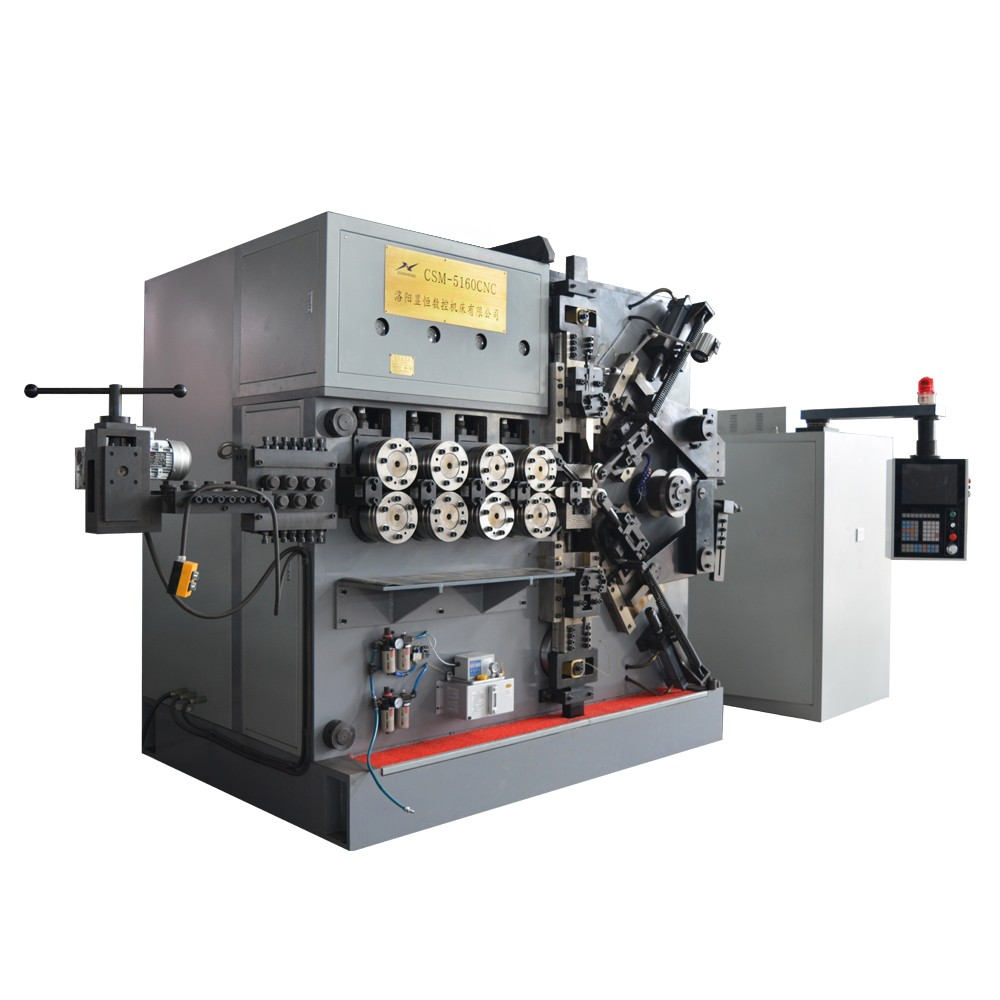

CSM-5160CNC Compression Spring Making Machine

Specifications of CSM-5160CNC Compression Spring Making Machine


Model No.

CSM-5160CNC

Wire Dia.

6-16 mm

Max. Outside Diameter

260 mm

Speed of the Wire Feed

51 m/min

Total power of Motors

93 Kw

Net Weight

17000 Kg

Machine Dimension

2550*1650*2550

Motor

Sanyo or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or Topcontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on





Advantages of CSM-5160CNC Compression Spring Making Machine

1) The large parts are made of whole steel plate, which increases the strength of the equipment.

2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.

3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.

4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.



For more information, contact us.
