CSM-5200CNC Spring Coiling Machine Spring Making Machine


  • An 5-axis coiling machine with a wire diameter of Φ8 to Φ20 mm and excellent cost-effectiveness.


LEARN MORE

  • Product detail
  • Range of application

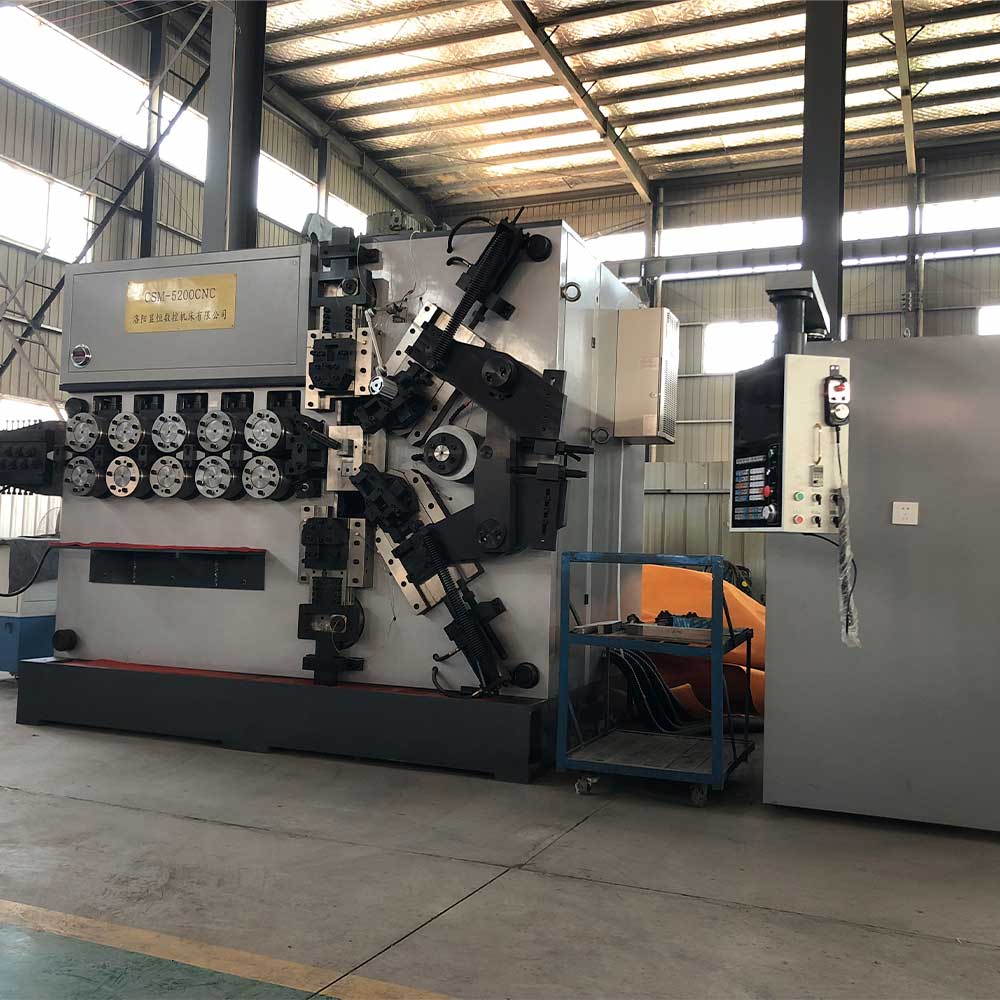

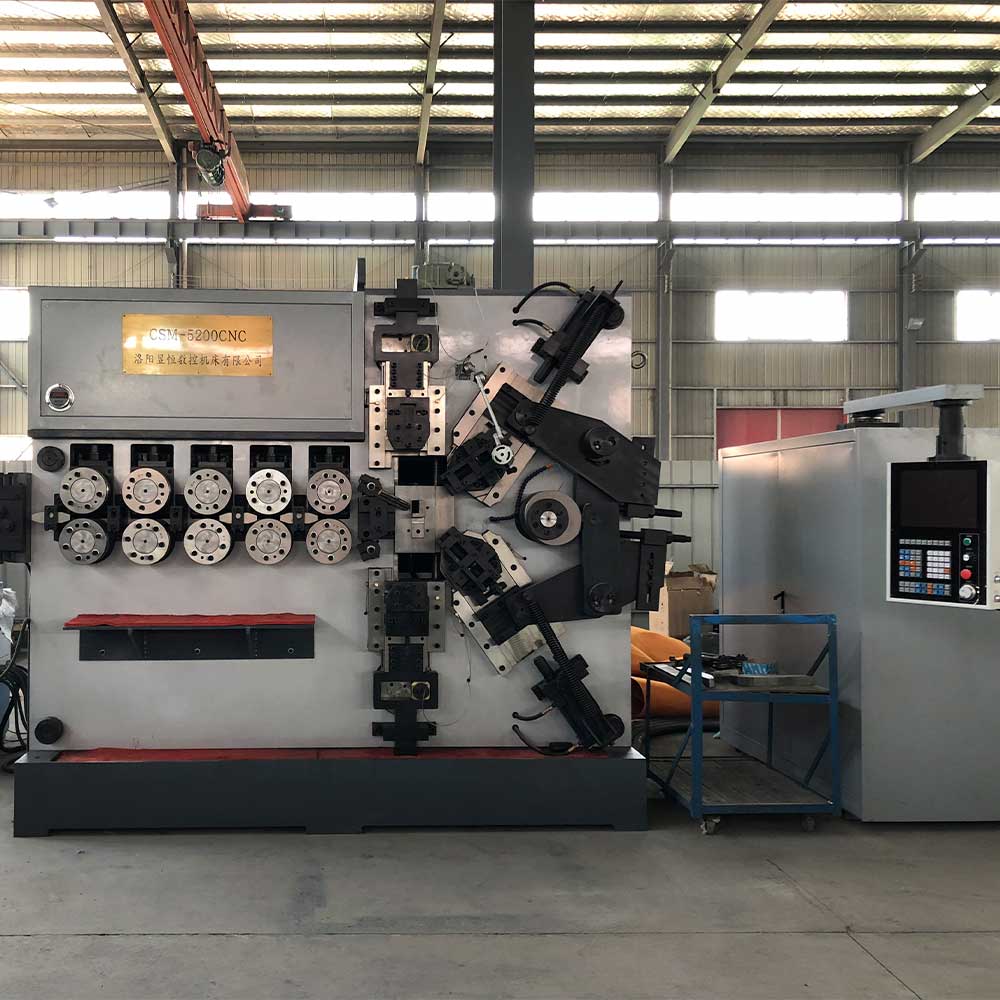

CSM-5200CNC Spring Coiling Machine Spring Making Machine


Product Specifications

Model No.

CSM 5200 CNC

Wire Dia.

8-20 mm

Max. Outside Diameter

280 mm

Speed of the Wire Feed

30 m/min

Total power of Motors

121 Kw

Net Weight

23500 Kg

Machine Dimension

3480*2048*2550

Motor

Yaskawa servo motor in Japan

Driver part

Yaskawa servo motor driver

Computer control system

Taiwan yitu

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on



Advantages of CSM 5200 CNC Spring Coiling Machine Spring Making Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.


For more information, contact us.
