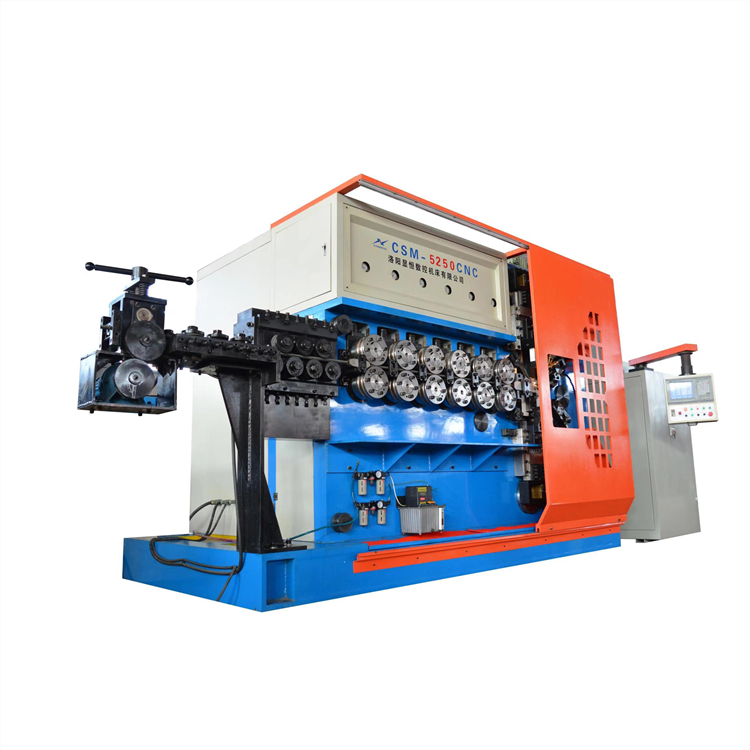

CSM-5250CNC Spring Coiling Machine Spring Making Machine


  • An 5-axis coiling machine with a wire diameter of Φ8 to Φ25 mm and excellent cost-effectiveness.



LEARN MORE

  • Product detail

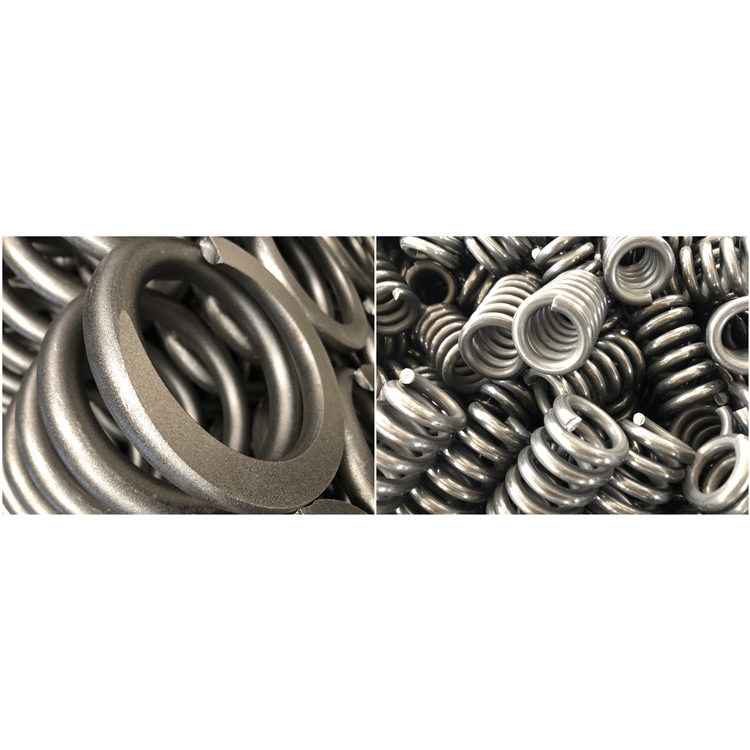

  • Range of application

CSM-5250CNC Spring Coiling Machine Spring Making Machine

Specifications of CSM 5250 CNC Spring Coiling Machine Spring Making Machine


Model No.

CSM-5250CNC

Wire Dia.

8-25 mm

Max. Outside Diameter

300 mm

Speed of the Wire Feed

30 m/min

Total power of Motors

145 Kw

Net Weight

32500 Kg

Machine Dimension

4360*2840*2550

Motor

Sanyo or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or Topontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on






Advantages of CSM-5250CNC Spring Coiling Machine Spring Making Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.



For more information, contact us.
