Product

CSM-6300CNC Compression Spring Making Machine


  • An 6-axis coiling machine with a wire diameter of Φ16 to Φ3mm and excellent cost-effectiveness.


LEARN MORE

  • Product detail

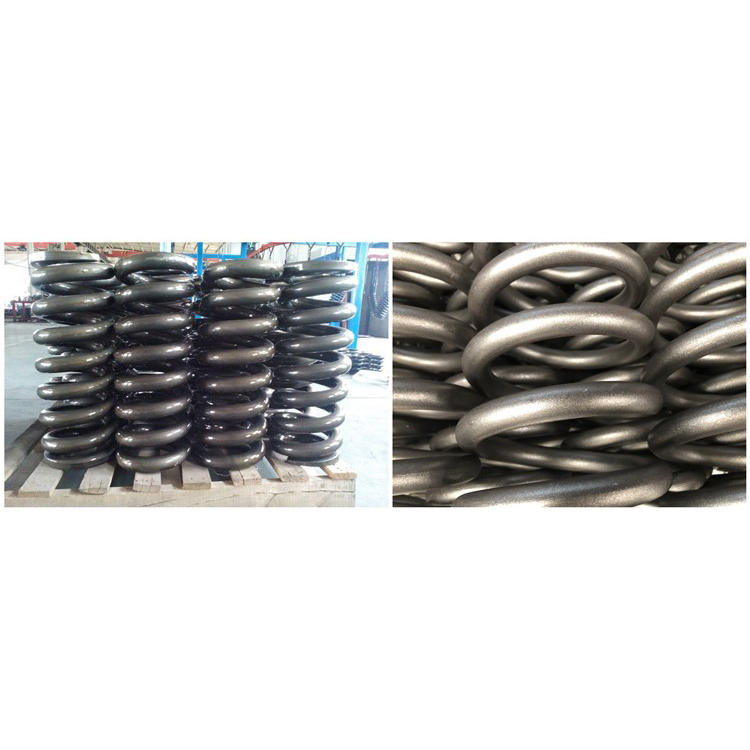

  • Range of application

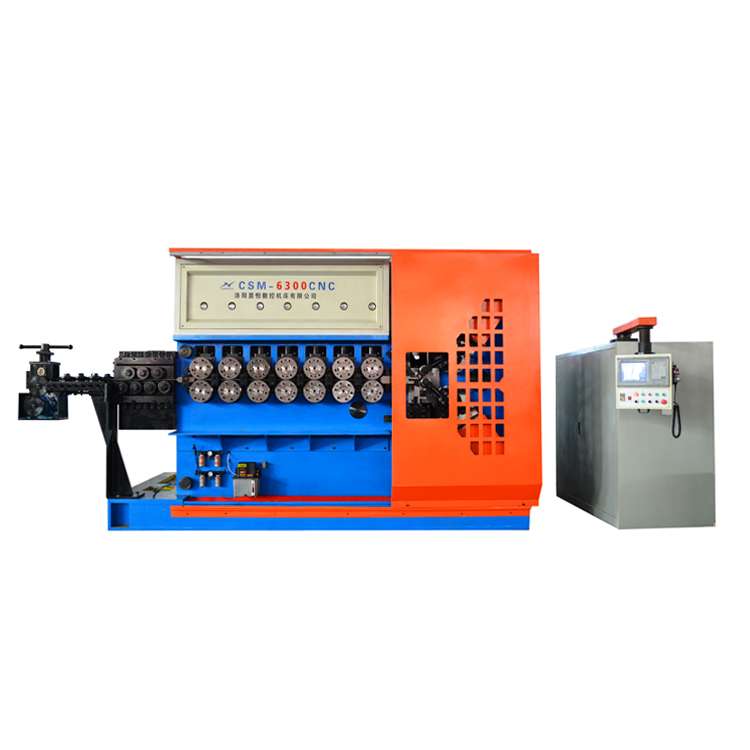

CSM 6300 CNC Compression Spring Making Machine

Specifications of CSM-6300CNC Compression Spring Making Machine



Model No.

CSM-6300CNC

Wire Dia.

16-30 mm

Max. Outside Diameter

350 mm

Wire Feeding length

unlimited

Feeding Wheels

7 pairs

Net Weight

40000Kg

Machine Dimension

5730*2840*3315

Motor

Sanyo Denki or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or Topcontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on




Advantages of CSM-6300CNC Compression Spring Making Machine

1) The large parts are made of whole steel plate, which increases the strength of the equipment.

2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.

3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.

4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.


For more information, contact us.
