OSM 310 CNC Oval Spring Coiling Machine



LEARN MORE

  • Product detail

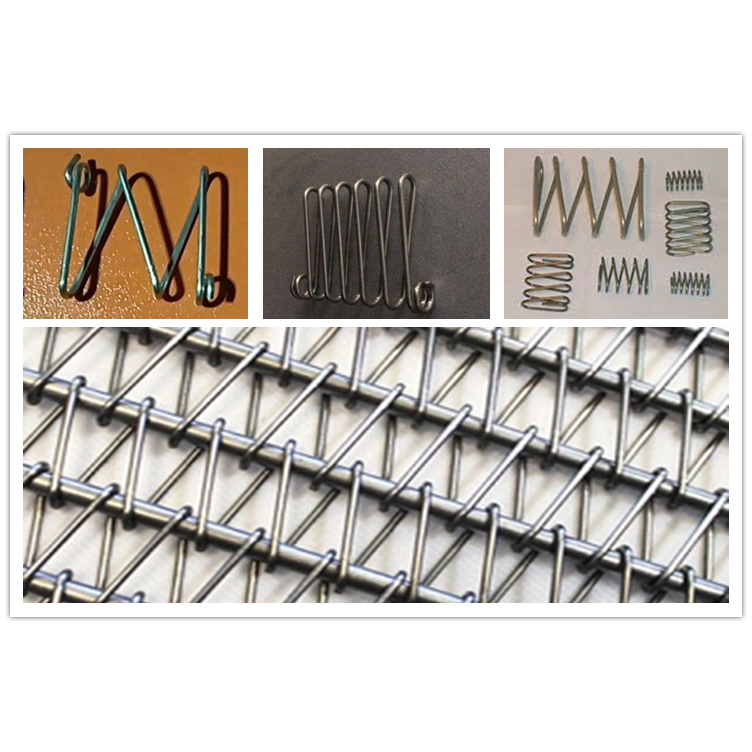

  • Range of application

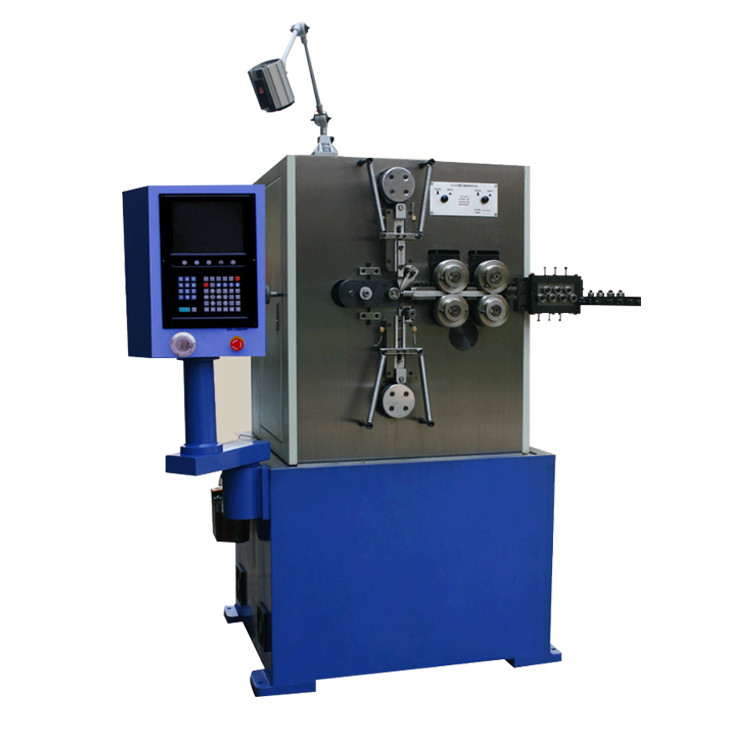

OSM 310 CNC Oval Spring Coiling Machine



Specifications of OSM 310 CNC Oval Spring Coiling Machine


Model No.

OSM-310CNC

Wire Dia.

0.3-1.0 mm

Max. Outside Diameter

35 mm

Speed of the Wire Feed

35 m/min

Total power of Motors

3 Kw

Net Weight

750 Kg

Machine Dimension

1250*680*1600

Motor

Yaskawa servo motor in Japan

Driver part

Yaskawa servo motor driver

Computer control system

Taiwan yitu

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on




Advantages of OSM 310 CNC Oval Spring Coiling Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.






For more information, contact us.
