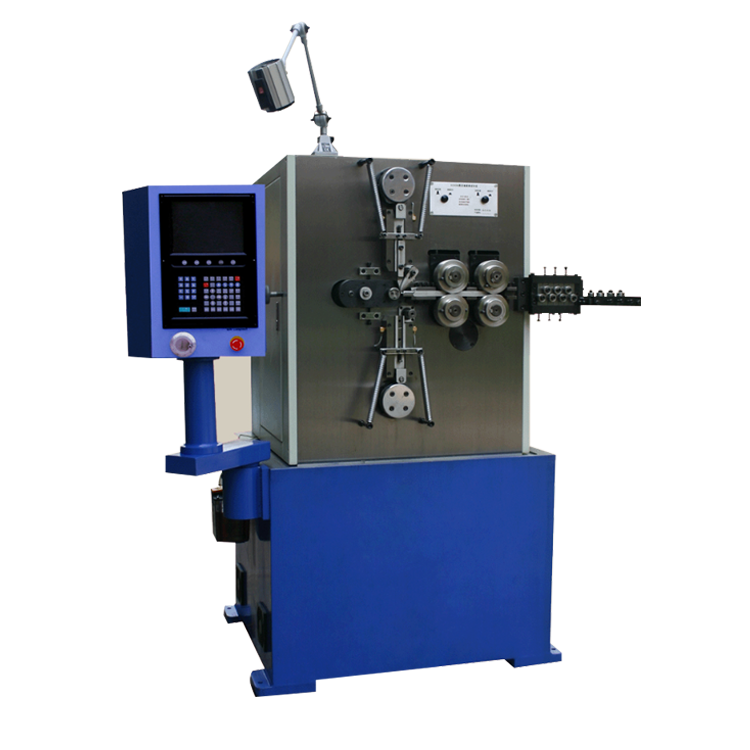

OSM 330 CNC Oval Spring Coiling Machine

Specifications of OSM 330 CNC Oval Spring Coiling Machine


Model No.

OSM-330CNC

Wire Dia.

0.8-3 mm

Max. Outside Diameter

50 mm

Speed of the Wire Feed

45 m/min

Total power of Motors

9.8 Kw

Net Weight

1500 Kg

Machine Dimension

1350*800*1700


Advantages of OSM 330 CNC Oval Spring Coiling Machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
