The Brief Introduction of Standard Spring Coiler Components

2019-10-21 19:41:53
    TAG :

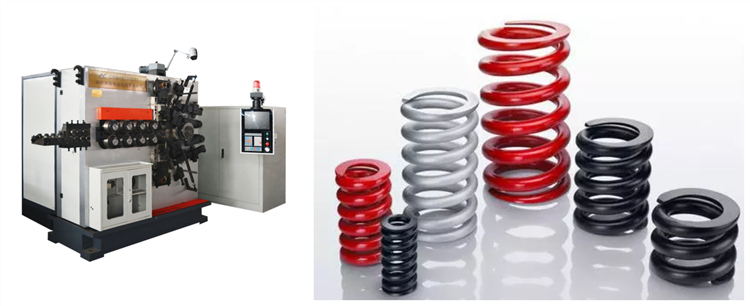

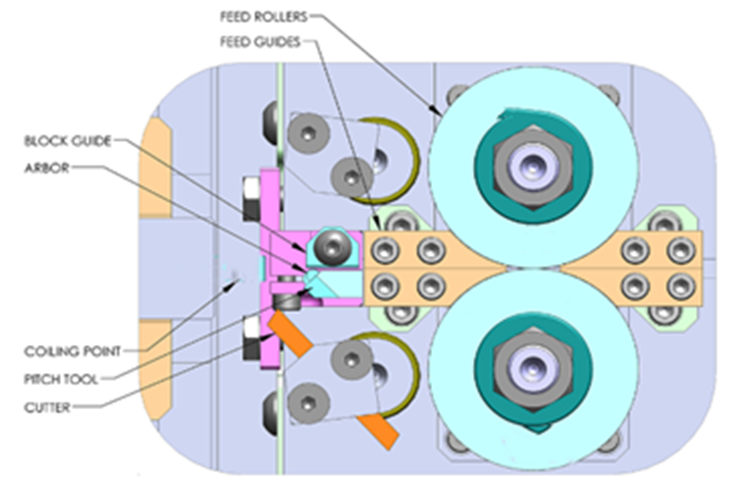

Feed Rollers: These circular elements area unit one amongst the foremost outstanding options on several spring volute machines. As they flip, they pull the wire from the reel and into the wire guides. Feed rollers typically feature 3 grooves of various sizes, reminiscent of identical grooves within the wire guides.

Wire Guides: Wire guides area unit flat elements containing grooves of varied size that match those on the feed rollers. The groove size doesn’t have to be compelled to match the wire specifically, however it will have to be compelled to be inside a such that vary. Wire travels through wire guides before reaching the block guide, the arbor or the volute purpose.

Block Guide: As wire exits the wire guides, it meets the block guide. This part ensures that the wire continues on the correct path to the volute purpose. The groove at all-time low of a block guide should be accurately machined to match the wire’s diameter.

Arbor: At identical time that the wire passes through the groove of the block guide, it passes over and round the arbor. In single-point coilers, the arbor represents the third purpose of contact at the purpose of volute. Spring physics demand a minimum of 3 purposes to coil wire; dual-point coilers have a 3rd purpose within the extra volute point, and then the arbor isn't as necessary.

Pitch Tool: By slippery up and down and moving the wire on a aslant surface, the pitch tool exactly controls the pitch of the spring. just like the arbor, this part is additionally fastidiously machined to suit every job.
Coiling Point: The volute purpose is that the part that pushes the wire into a volute form by deflecting its mechanical phenomenon. Setup parameters confirm precisely the angle at that the wire is deflected, that successively determines the spring index, diameter and overall form of the spring. One notable distinction between spring coilers is that the variety of volute points. See this post for an summary of single-point and dual-point spring coilers.
Cutter: once a coil has reached its desired length, the cutter slices the wire to form a separate spring. betting on the volute direction, the cutter could also be positioned higher than or below the arbor.
