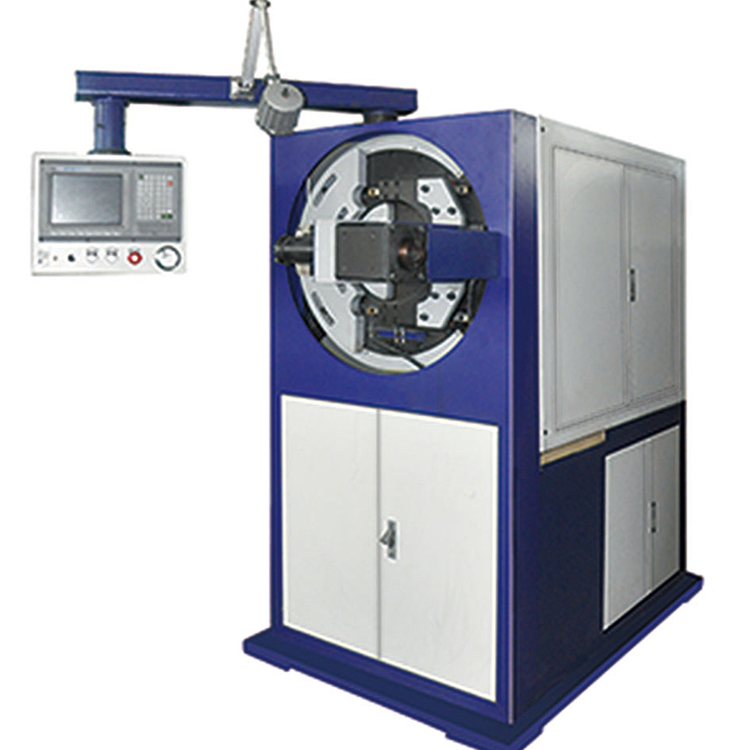

BSM 560 CNC bending spring wire machine

Specifications of BSM 560 CNC bending spring wire machine


Model No.

BSM 560 CNC

Wire Dia.

2-6 mm

Turning arm axis motor

2.9 Kw

Wire feeding Axis Motor

2.7 Kw

Total power of Motors

8.6 Kw

Machine dimension

4000 Kg

Machine Dimension

2200*1200*2000

Motor

Yaskawa servo motor in Japan

Driver part

Yaskawa servo motor driver

Computer control system

Taiwan yitu

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on


Advantages of BSM 560 CNC bending spring wire machine
1) The large parts are made of whole steel plate, which increases the strength of the equipment.
2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.
3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.
4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
