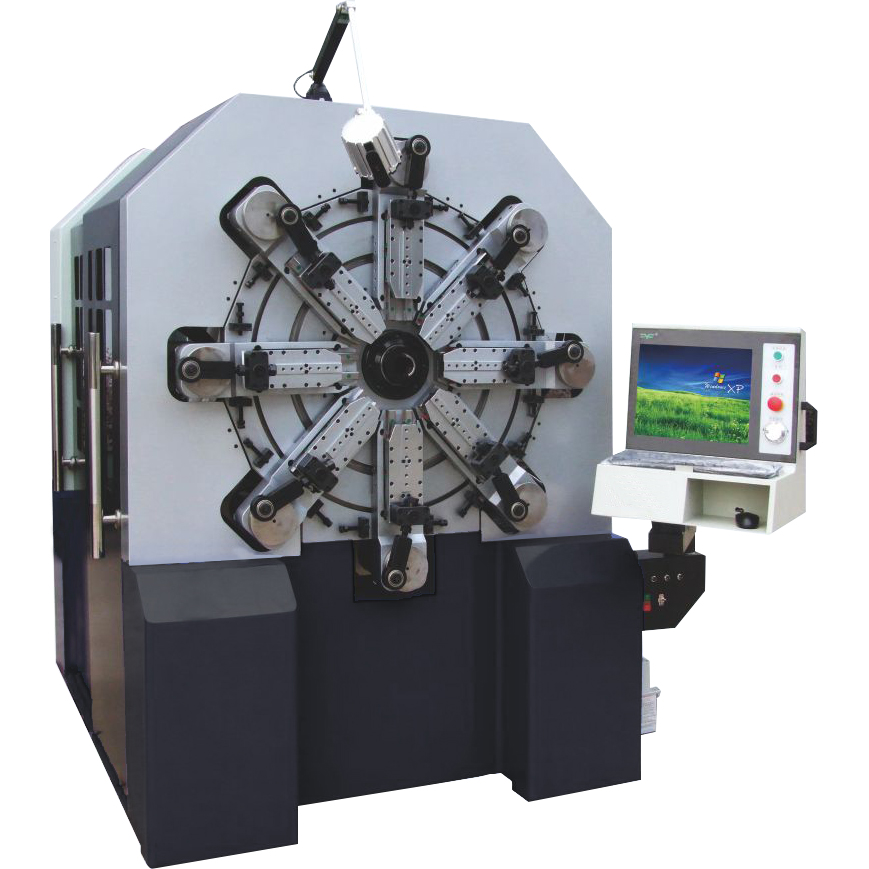

CFM-1245CNC Spring Forming Machine Tension Spring Machine


  • With Camless design and free Rocker Arm technology to achieve high precision and production efficiency

    Wire diameter:1.2-4.5mm

    Axis count: 12 axis


LEARN MORE

  • Product detail
  • Range of application



Specification of CNC1245 Spring Forming Machine :


Model:CFM-1245CNC
Wire dia:¢1.2~4.5mm
Max wire feed:10000.00mm
Min wire feed:0.01mm
Max.wire Food speed:80m/min
Max. Wire Feed Length:Unlimited
Axis number:12
Program storage:More than 2000pcs
Probe:3
Dimensions:2150*1900*2070mm
Weight:4100kg
The input voltage:

380v
