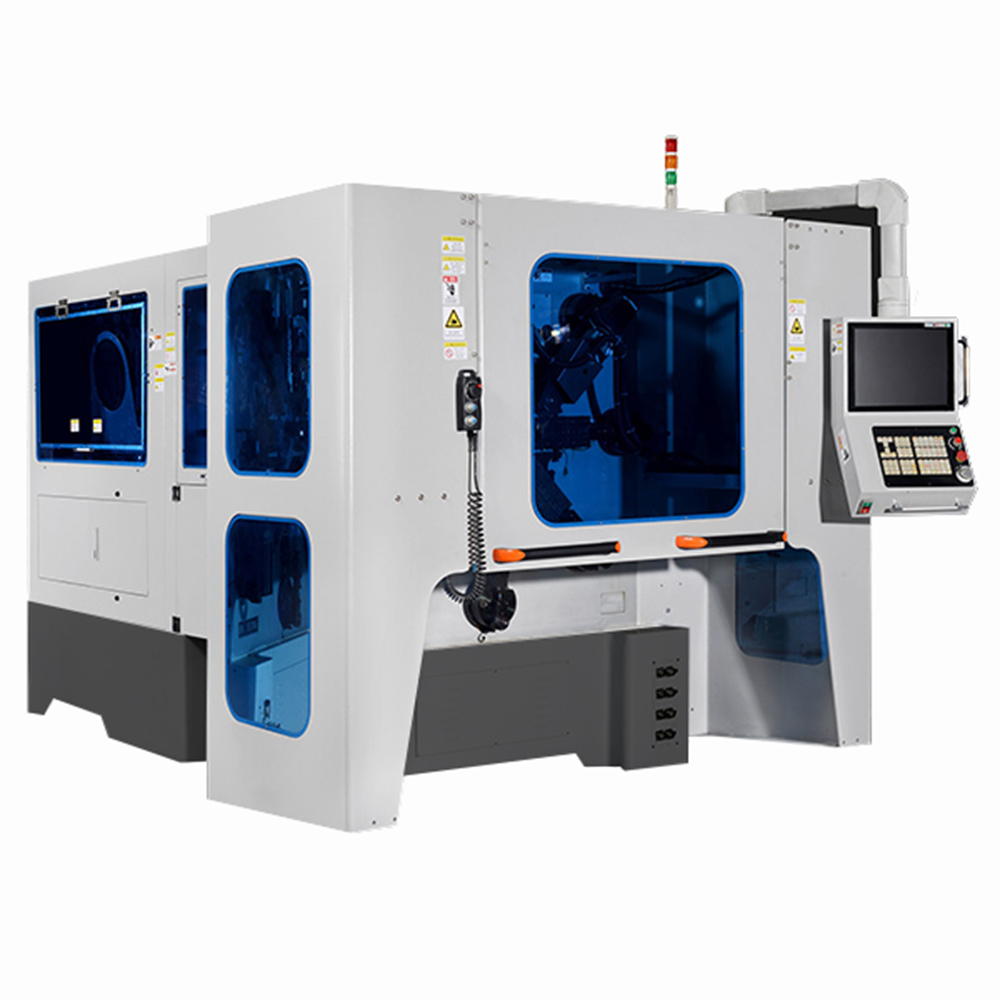

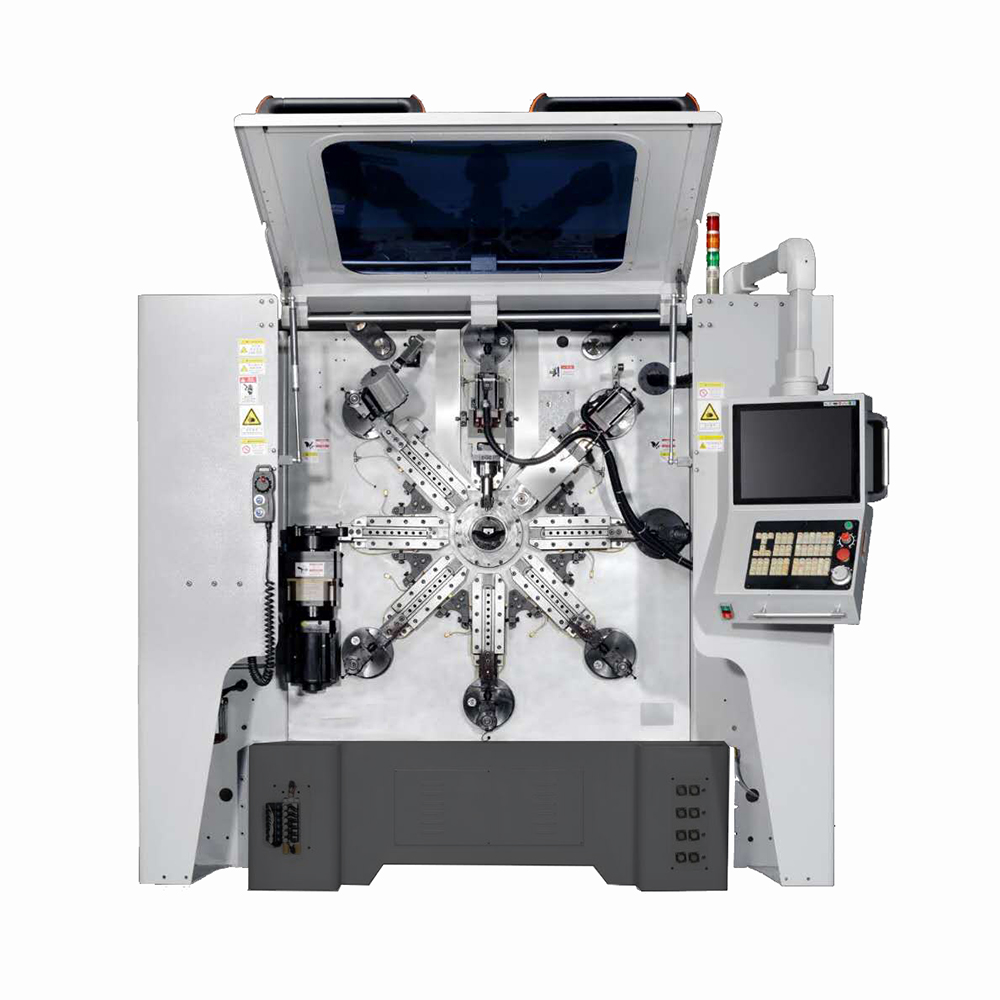

CFM-1480CNC Camless Forming Machine


  • CFM-1480CNC Camless Forming Machine (Wire diameter:4-8mm)

    The standard 14 sets of servos include wire feeding, wire transfer, core rotation, servo slider, etc., which can be expanded to 16 axes at most,

    Maximize full servo operation



LEARN MORE

  • Product detail
  • Range of application


Model:CFM-1480 (Standard 14 axes,up to 16 axes)
Wire Diameter:4.0-8.0mm
Max. Wire Feed Speed: 60-80m/min
Max. Wire Feed Length:Unlimited
Axes Number: 14 axes
Total Power:65kw
Input Voltage:3 Phrase, 220V
Program Data Storage:More than 999pcs
Max. Wire Feeding Instructions:99999.99mm
Min. Wire Feeding Instructions:0.01mm
Dimensions: L*W*H 4250*2200*2600mm(length include cantilever box)
Machine Weight:About 8500KG
Decoiler Load Weight:1000 KG


Main features

1. The standard 14 sets of servos include wire feeding, wire transfer, core rotation, servo slider, etc., which can be expanded to 16 axes at most,

Maximize full servo operation

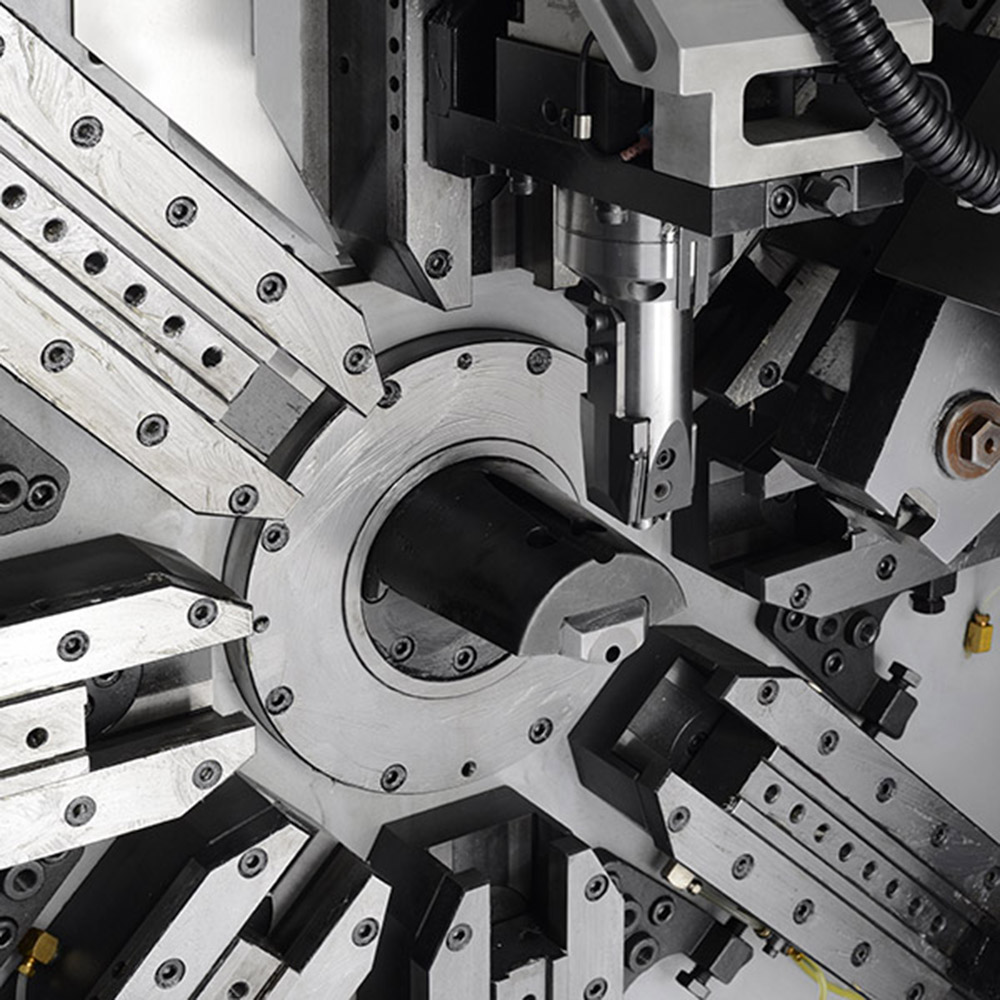

2. The six-degree-of-freedom central drive device can realize wire forming actions such as bending, winding, pushing, and corner folding in the simplest way

3. The flexible optional servo slide can be used with servo scissors, single-winding curling, double-winding curling and any other tooling required for forming actions

4. Standard eight sets of pneumatic control points, four sets of probe points, can also be matched with laser probes

5. The standard universal tool holder can be used with other equipment of our company, saving unnecessary expenses to the greatest extent

6. The brand-new operating system can realize the quick setting of the forming program and the convenient and quick teaching and programming!


Universal, widely used, high reliability, high stability spring wire Molding machinery

◆The cutting unit with independent servo motor control is compact and powerful.

◆Using high-quality cold-worked alloy steel as the knife edge, the regular life is more than 50,000 times.

◆It can produce torsion spring, tension spring and wire bending forming operation system easy to use and reliable;


For more information, contact us.
