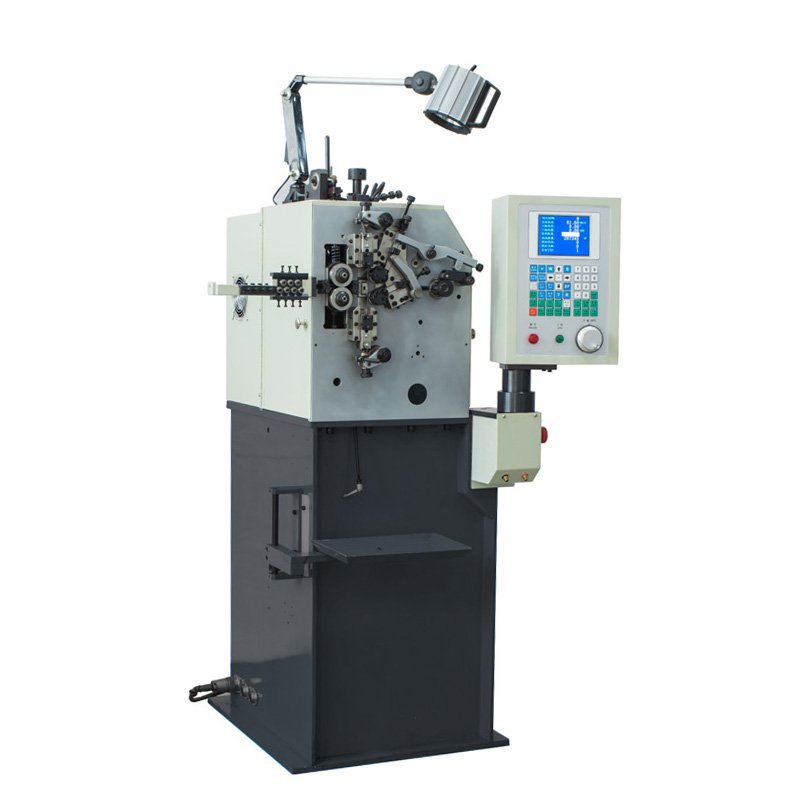

CSM-208CNC 2 axis CNC compression spring machine
Spring diameter 0.1~0.8mm It is composed of Y axis and X axis of CAM respectively, and each servo axis can operate independently or synchronously according to the program of the system.
LEARN MORE
- Product detail
- Range of application
Specification of CSM-208CNC Compression Spring Machine :
| Model: | CSM-208CNC |
| Wire diameter: | φ0.1～0.80mm（Min wire to 0.07mm，according to specific product） |
| Axes: | 2 axes |
| Maximum Outside Diameter: | 20mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 550pcs/min |
| Feed Speed: | 300m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 0.75kw |
| Cam Servo Motor: | 0.75kw |
| Power AC: | 3-Phase 220v/3-Phase 380v/3-Phase 420v |
| Dimension (L*D*H): | 900X850X1600mm |
| Wooden Case Dimension: | 1000x1050x1750mm |
| Machine Weight: | 400kg |
| Gross Weight: | 450kg |
CSM-208CNC compression spring machine is a 2-axisequipment consisting of wire feeding Y axis and cam X axis.
lt adopts Taiwan controlling system andJapaneseindustrial servo motor, each motion fromthe machine are directed byits CNC center.
1. Full digital drive, film type button, Chinese andEnglish display, convenient operation.2.Cams adopt grinding process, with bettersmoothness.
3. Cam axis can act both clockwisely or counter-clockwisely, wire feed length can be adjusted whilemachine operation.
4.Computer automatically detect and decelerateservo motor when it is overheating.
5.Production rate can beincreased or decreased atany time running the machine.
6.Probe deceleration ratio function adopted
Product Range:

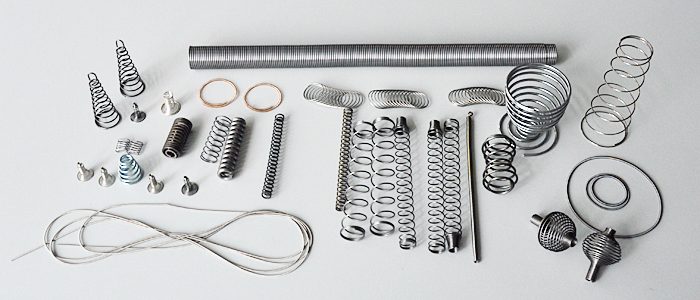

This compression spring machine make various compression springs, wire coil, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as simple wire forms.
