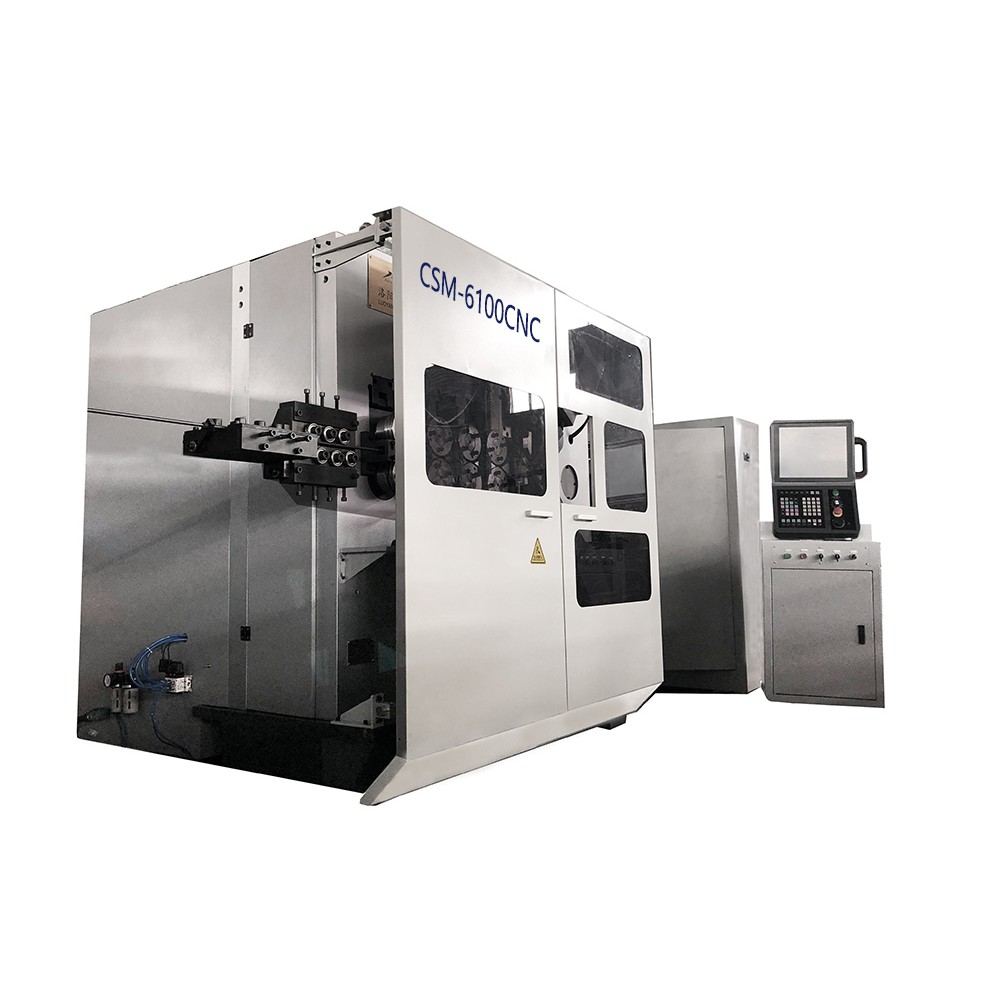

CSM-6100CNC Compression Spring Coiling Machine


  • An 6-axis coiling machine with a wire diameter of Φ6 to Φ10mm and excellent cost-effectiveness.


LEARN MORE
  • Product detail

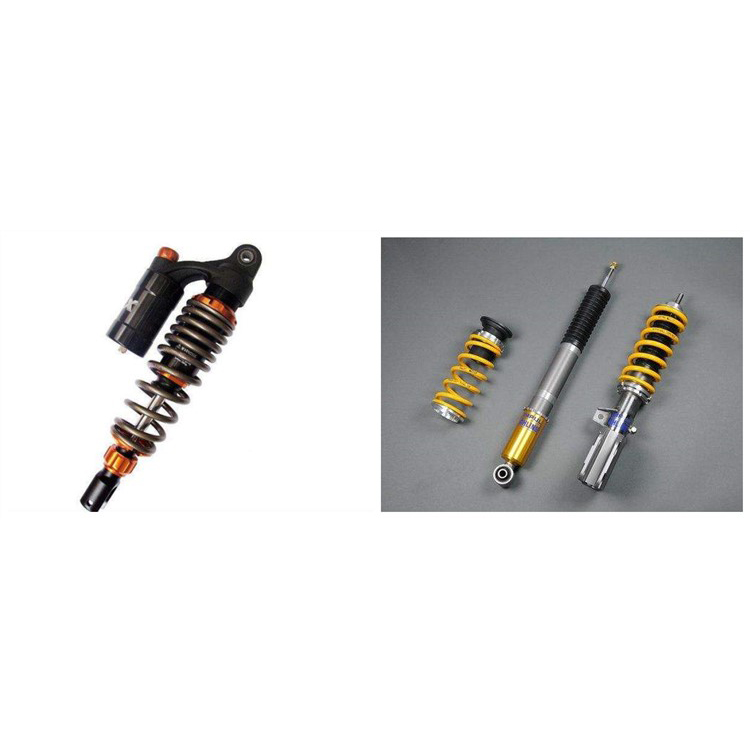

  • Range of application

CSM-6100 CNC Compression Spring Coiling Machine:


Specifications of CSM-6100 CNC Compression Spring Coiling Machine


Model No.

CSM-6100CNC

Wire Dia

6-10 mm

Max. Outside Diameter

110 mm

Speed of the Wire Feed

93 m/min

Total power of Motors

73.4 Kw

Net Weight

10000 Kg

Machine Dimension

2350*1600*1870mm

Motor

SANYO DENKI Or YASKAWA servo motor in Japan


Driver part

Yaskawa servo motor driver

Computer control system

Arcuchi, Taiwan hust ,TPK

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on



Advantages of CSM-6100 CNC Compression Spring Coiling Machine

1) The large parts are made of whole steel plate, which increases the strength of the equipment.

2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.

3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.

4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.



For more information, contact us.
