CSM-6160CNC compression Spring coiling Machine


  • An 6-axis coiling machine with a wire diameter of Φ6 to Φ16 mm and excellent cost-effectiveness.


LEARN MORE
  • Product detail

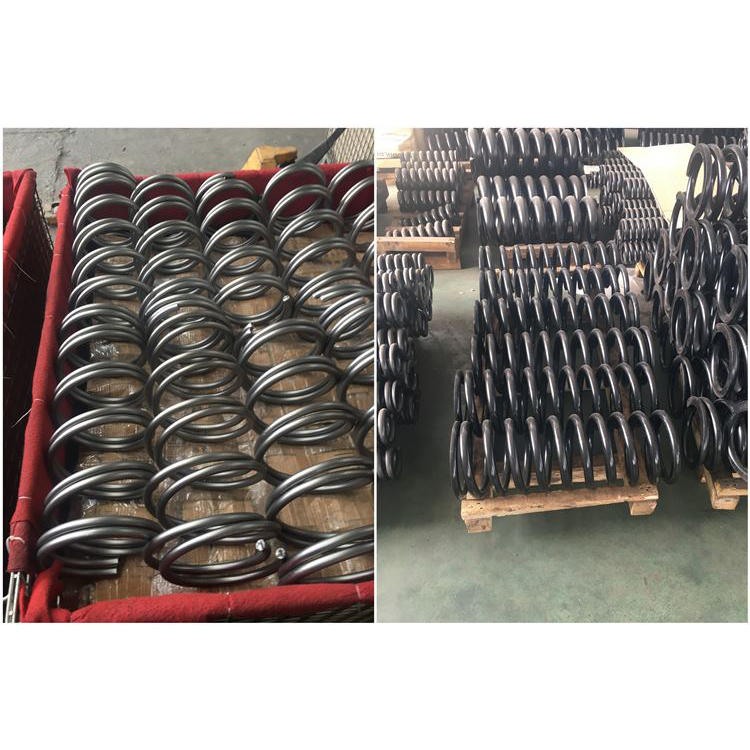

  • Range of application

CSM-6160CNC compression Spring coiling Machine


Specifications of CSM-6160 CNC compression Spring coiling Machine


Model No.

CSM-6160CNC

Wire Dia.

6-16 mm

Max. Outside Diameter

260 mm

Speed of the Wire Feed

51 m/min

Total power of Motors

108 Kw

Net Weight

18000 Kg

Machine Dimension

2550*1650*2550mm

Motor

Sanyo or Yaskawa servo motor in Japan

Driver part

Sanyo or Yaskawa servo motor driver

Computer control system

Taiwan hust or Topcontech(TPK)

Material of the wire

65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and  so on




Advantages of CSM-6160CNC compression Spring coiling Machine

1) The large parts are made of whole steel plate, which increases the strength of the equipment.

2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable.

3) The transmission part adopts planetary reducer to reduce noise and improve accuracy.

4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
