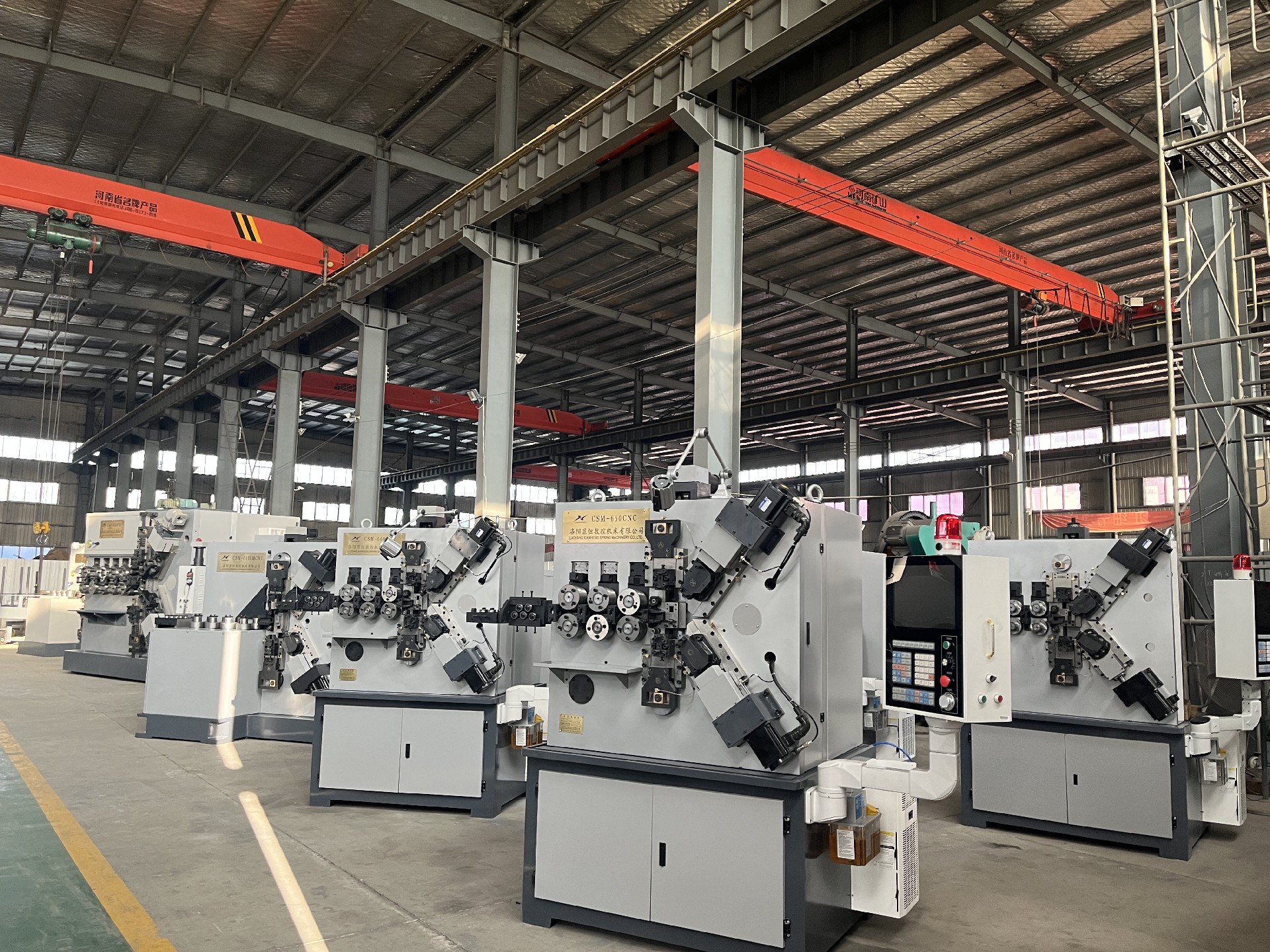

CSM-660CNC Compression Spring Coiling Machine
CSM-660CNC Compression Spring Coiling Machine
6 aixs Compression spring coiling machine
Wire diameter：2-6mm
LEARN MORE
- Product detail
- Range of application
China 6 Axis CNC automatic wire coiling machine machinery used to make springs.
| Model No. | CSM-660CNC |
| Color | Grey/White |
| Diameter of the steel wire(mm) | Φ2~Φ6mm |
| Max. outside diameter(mm) | Φ90mm |
| Length of the feeding wire | no limitation |
| Speed of the wire feed | 90m/min |
| Rotation | left or right |
| Forming way | Double points |
| total power of motors | 29.4kw |
| Machine size | 1650*1200*2050mm |
| Machine weight(kg) | 4000kgs |
TECHNICAL ADVANTAGES:
1.Directly produce 6mm oil quenching spring steel wire.
2.Six-axis servo motors control, multi-point linkage, easy to learn andunderstand.
3.lt adopts double wall panels and is made of a whole steel plate, which isvery rigid.
4.The sliders and sliding seats are made of Cr12MoV material to increasethe service life.
5.The transmission part adopts high-quality planetary reducer to reducenoise and improve precision.
Core Application Areas:
1. Automotive Manufacturing: Production of automotive seat springs, shock-absorbing springs for suspension systems, valve springs for engine valvetrains, brake system springs, and various fasteners.
2. Electronics & Appliances: Contact springs and positioning springs for various electronic components, such as switches, relays, connectors, mobile phones, and laptop computers.
3. Machinery & Industrial Equipment: Compression, extension, and torsion springs for industrial machinery, tools, and conveyor systems.
4. Toys & Crafts: Various wire-formed parts for toy clockwork mechanisms, leisure chairs, decorative items, and similar products.
5. Leisure & Sports Equipment: Springs requiring high rigidity for use in bicycles, fitness equipment, and various sports apparatus.
This type of machine typically features high-precision wire forming capabilities and the ability to rapidly switch between production types, thereby meeting the requirements of medium-intensity industrial applications.
